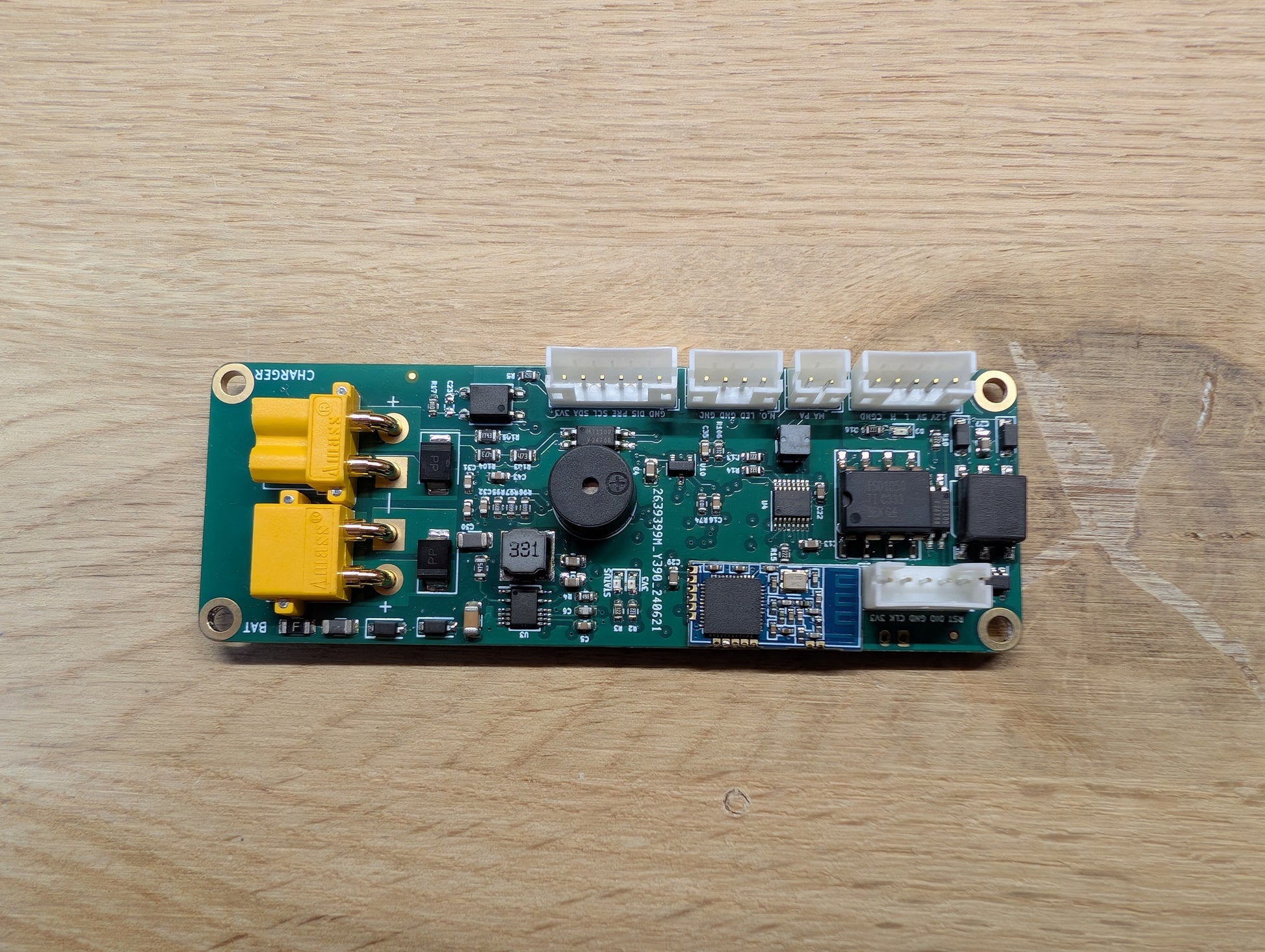

ENNOID BMS Master-Xlite

ENNOID Master-XLITE for use with slave BMSes. You can use it with either the ENNOID 24S or 36S slaves or with our GT or XR flightpacks.

- Charge only, Smart BMS with VESC tool compatibility

- Master & slave configuration

- up to 20 x 12S modular slaves (enable split packs, modular packs, parallel packs etc.)

- 2 wires ISOSPI communication between Master & slave (up to 2 meters distance between each slave)

- Cell voltage, humidity, internal & up to 8 external temperature sensors, charge current, SoC, SoH, Wh, Ah, pack & charger voltages monitoring

- Isolated CAN bus & Bluetooth connectivity

- JST PH 2.0mm connectors

- XT30 connectors for battery & charger connection

- Support N.O. momentary push button with LED

- 1 x I2C bus (support most SSD1306 displays & some other I2C devices)

- 2 extra outputs (for optional pre-discharge & discharge signals) see XLITE-SHIELD

- Buzzer , Status LED, automatic wake-up & auto-shutdown
