Ennoid MK9-LCM

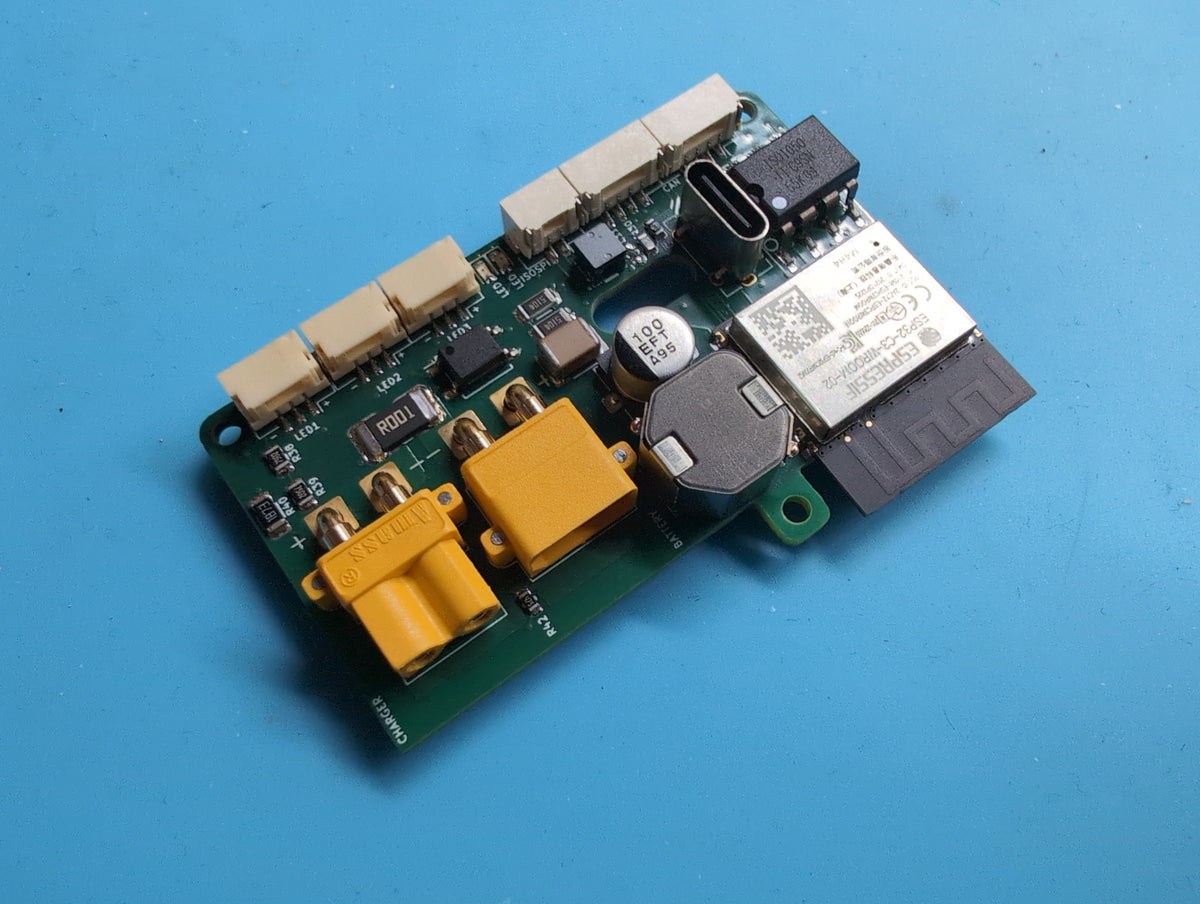

MK9-LCM is a multi-function VESC-EXPRESS module which fits directly on top of the MK9 & MK9-PRO.

Description:

• Integrated buck converter, 30V to 200V input
• Charge only BMS, compatible with ENNOID slaves via 2 wires ISOSPI
• Solid state relay for charge, current, charger voltage readings, humidity, FETs temperature, etc.
• 3 x LED outputs (up to 3A@5V or 3A@12V, ~36W max. power output)
• Logic shift 3.3V->5V for lighting signals
• Isolated CAN bus
• USB-C, ISOSPI, Bluetooth, WiFi, I2C
• Hibernation current: less than 35uA
•  5V or 12V outputs (resistor swap for selecting voltage level for each LED output)
• XT30 connectors for battery & charger connection
• JST GH 1.25mm for LED, CAN bus and ISOSPI
• Adds only 6.5mm on top of the MK9 height


How to use:

• Mount onto the MK9 or MK9-PRO top opening with 3 x M2 screws
• Plug the XT30 power input
• Link CAN bus with VESC controller
• Configure over USB or Bluetooth with VESC-Tool
• Use LED outputs with your preferred lighting strips
• Use ISOSPI and XT30 charge port for BMS operation

Except for the isolated CAN bus and main power input, no connectors shall be connected/shared with the VESC!

Precharging is required above 140VDC!
