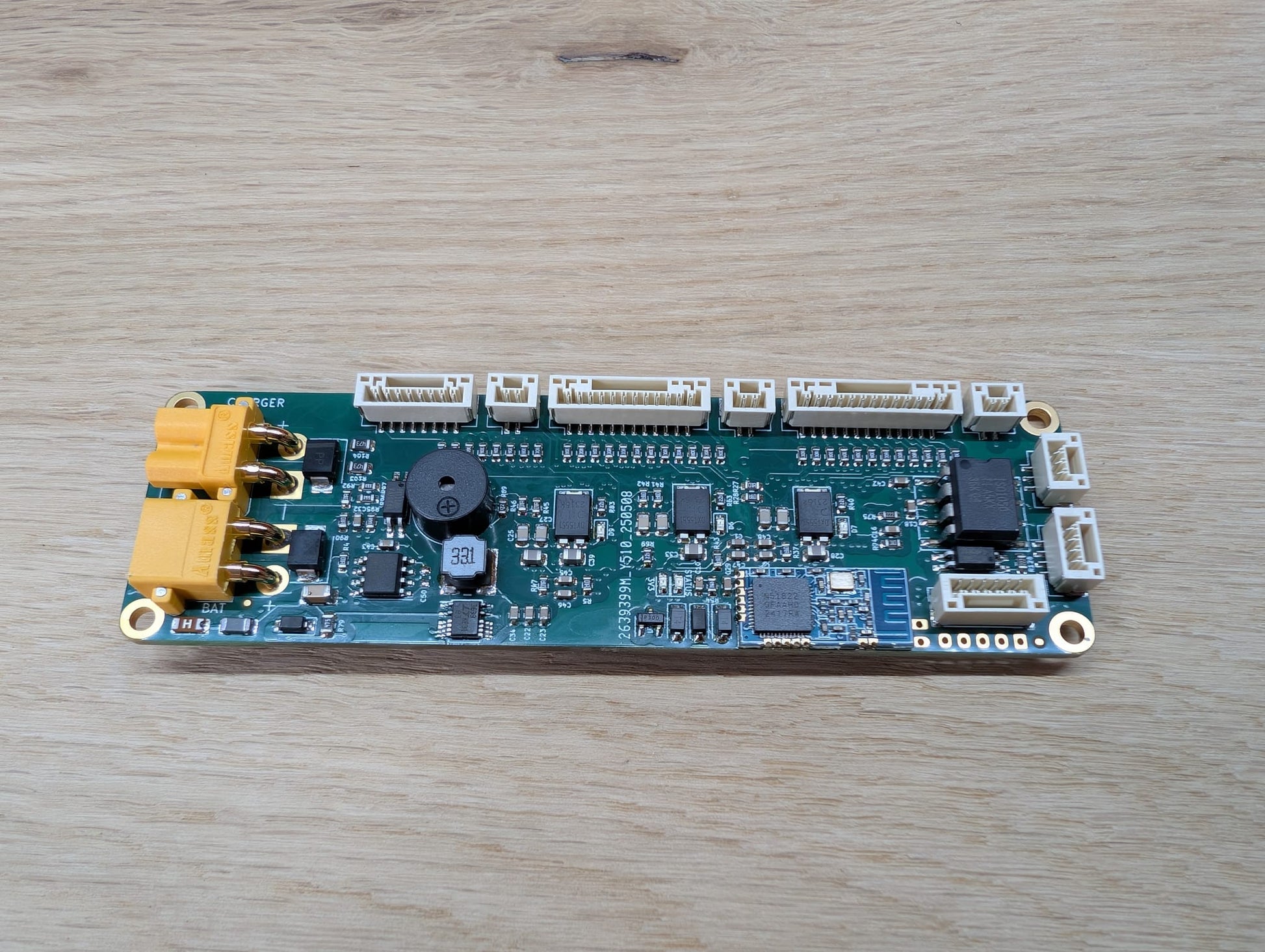

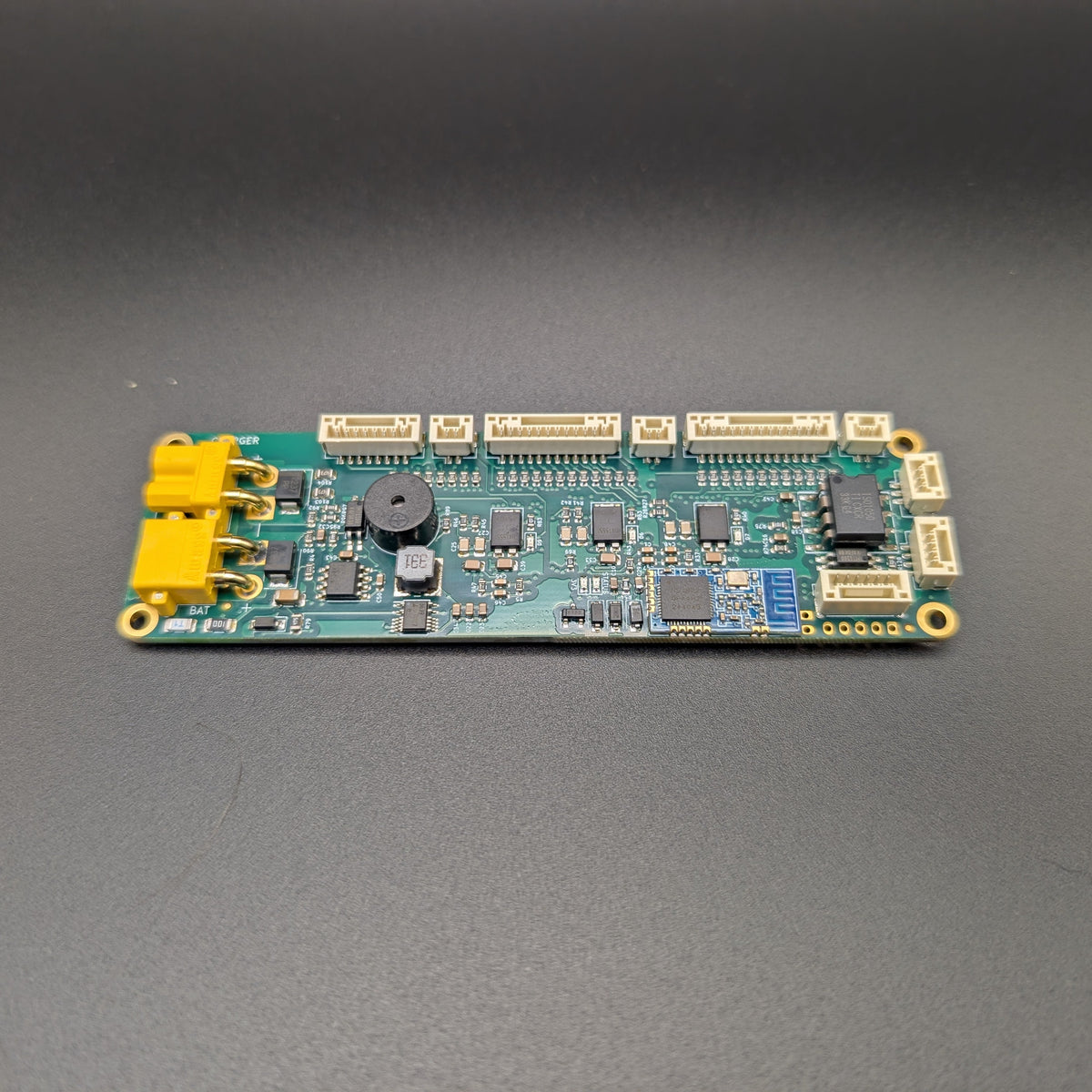

ENNOID-BMS XLITE-32 V4

Ennoid XLITE-V4

This is the 32S version usable for 13-32S packs

- Charge only, Smart BMS compatible with the VESC ecosystem
- Easy setup with VESC-tool mobile app
- Isolated CAN bus & Bluetooth connectivity
- Cell voltage, humidity, internal & up to 2 external temperature sensors, charge current, SoC, SoH, Wh, Ah, pack & charger voltages monitoring
- XT30 connectors for battery & charger connection
- Support N.O. momentary push button with LED
- 1 x I2C bus (support most SSD1306 displays & some other I2C devices)
- 2 extra  outputs (for optional pre-discharge & discharge) see XLITE-SHIELD
- Buzzer , Status LED, automatic wake-up & auto-shutdown

Boards are sold without accessories.
