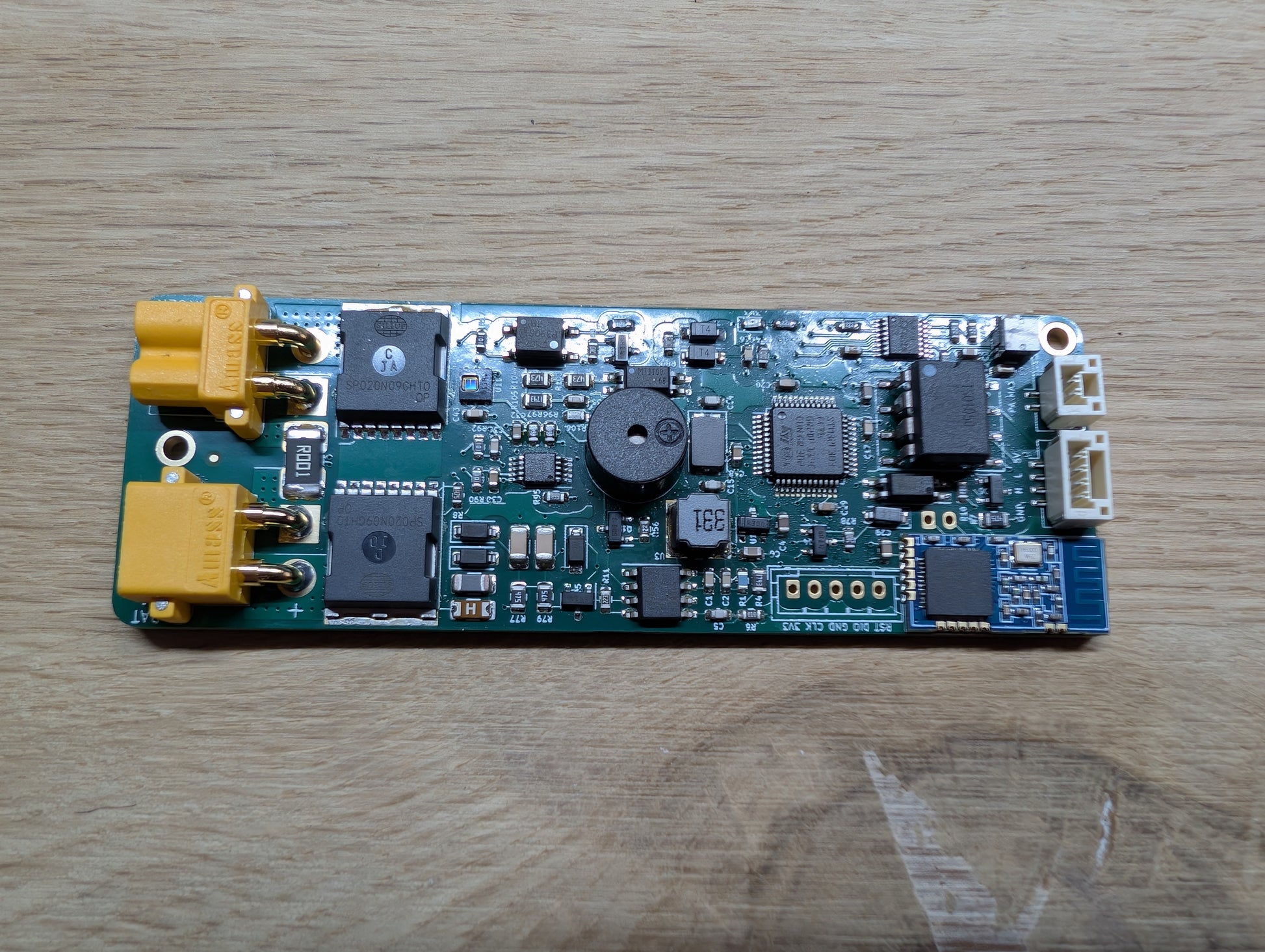

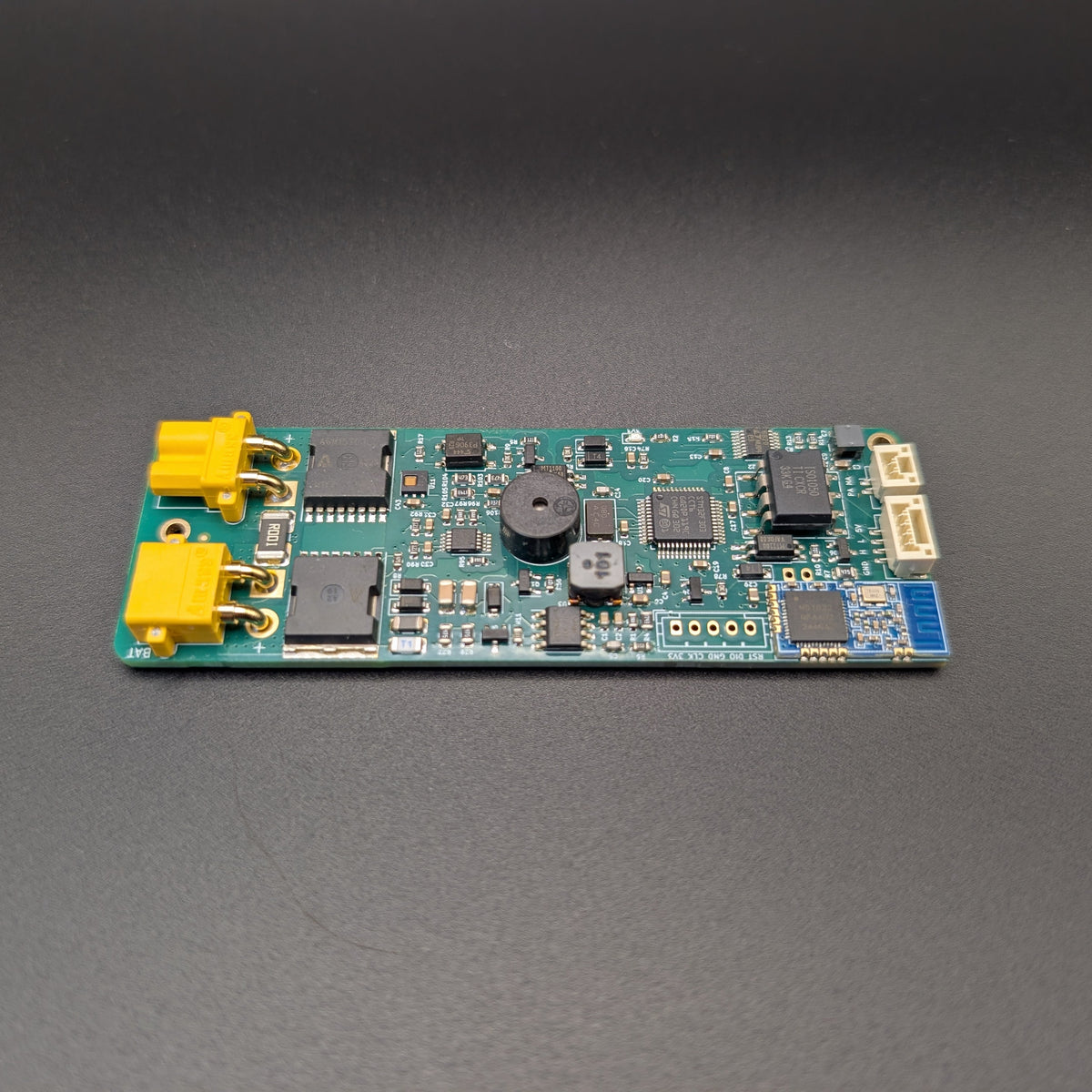

ENNOID BMS Master-Xlite-ISC

ENNOID Master-XLITE-ISC for use with slave BMSes. You can use it with either the ENNOID 24S or 36S slaves or with our GT or XR flightpacks.

- Charge only, Smart BMS with VESC tool compatibility

- Master & slave configuration

- up to 20 x 12S modular slaves (enable split packs, modular packs, parallel packs etc.)

- 2 wires ISOSPI communication between Master & slave (up to 2 meters distance between each slave)

- Cell voltage, humidity, internal & up to 8 external temperature sensors, charge current, SoC, SoH, Wh, Ah, pack & charger voltages monitoring

- Isolated CAN bus & Bluetooth connectivity

- JST GH 1.25mm connectors

- XT30 connectors for battery & charger connection

- Buzzer , Status LED, automatic wake-up & auto-shutdown
